This coin operated timer can be used to operate any electrical appliances or electrical products within the loading of 10amps. Count down timer can be set for on time selected and counts down to automatically stop, or delete by pushing red button to left of display.
It has been designed for easy installation. For installation on auto washer or domestic dryer and other appliances, all that is required is to cut the cable to the appliances and wire into timer controller, 4 cable entry points are available.
Full instruction on installation, cable clamping and connection, photographs are given.
The coin operated timer steel powder coated box is well constructed and houses the coin collector, coin acceptor, digital timer, circuit board.
The 2 key lockable coin collector has large enough storage for a large quantity of coins.
The coin acceptor only allows coins that you have programmed to be accepted. When programming, the first coin is passed through acceptor and read by the acceptor, then the next coin passed through, up to 6 different coins can be accepted.
This then only allows the coins that you have allowed access for, to be accepted.
Digital timer is a count down timer which can be set for a selected time, the amount of coins put through the acceptor that you set, determines the time that it will run, maxmuim of 99.99 min (eg $1-30min, $2 60min).
Depending on what time you have selected the timer counts down to 00 and switches off. Timer can be reset at any stage.

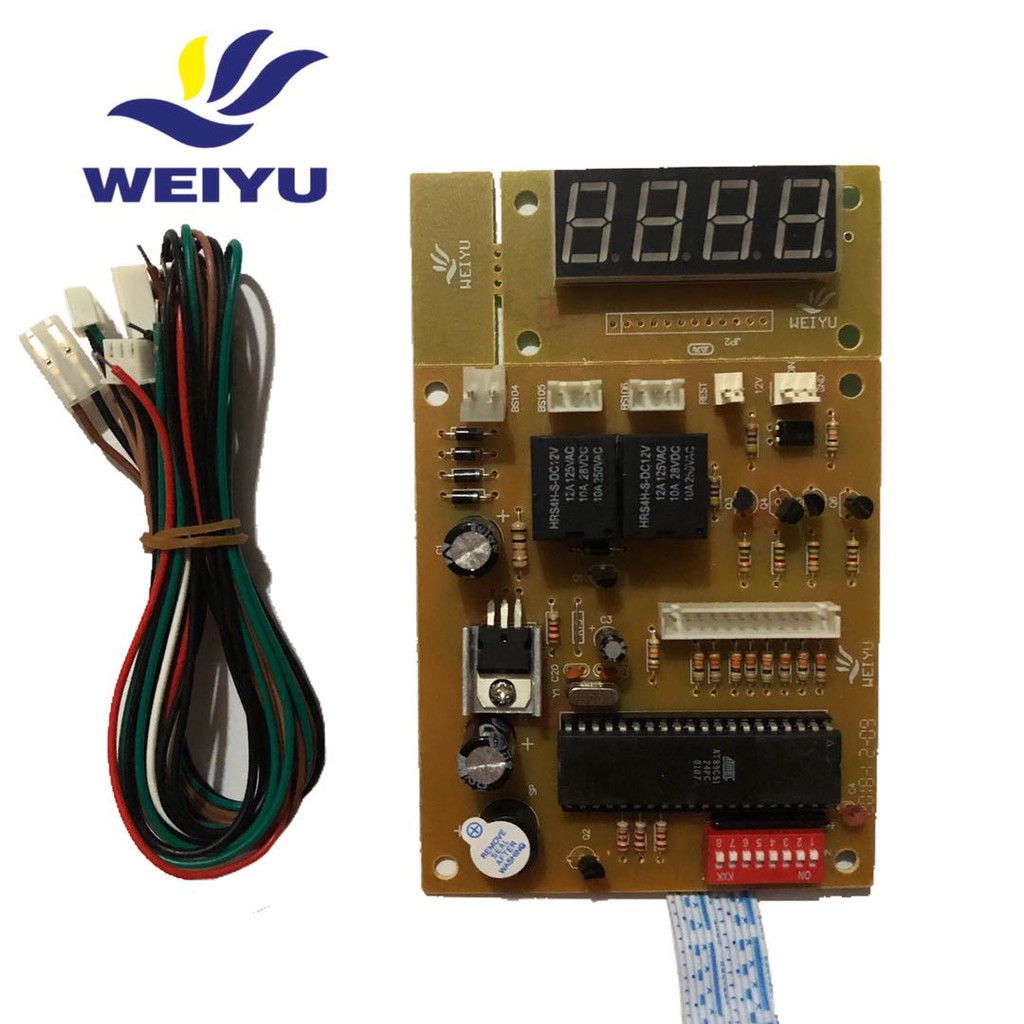

Circuit board contains electronic contols for the timer and receives signals from acceptor, transformer is for the circuit board power supply.
Full instruction of installation is given, with easy install programming on purchase, with print off installation available.
Coins Slot With Digital Timer, roulette pour maroufler, poker malaga, slot intel optane. Read our full review. Get Up To £50 Deposit Bonus.
- Alibaba.com offers trendy and durable coin slot and digital timer control box for water dispenser machine that can be used for several varied purposes. From storing to packaging, these coin slot and digital timer control box for water dispenser machine can be used for all.
- The 5000 Series model is a slide activated timer that accumulates time with each coin slide push. The 5900 Series models – the exclusive QuarterMasters by Greenwald, are coin-activated electromechanical timers that accept most currency including international coinage.
- Play free slot machine games and enjoy a real casino experience at Lucky Time Slots. FREE to play casino slots on Facebook and mobile. Get a HUGE Coins Welcome Bonus @ Lucky Time Slots online casino game and spin the amazing selection of casino games from the get-go. All slots at Lucky Time online casino games are done right! New FREE slot machine casino titles added weekly. Don’t miss your.
- At Timer's Coins, we understand coin collectors. In our store you will find a wide variety of key date single proof and BU Coins and conveniently grouped date runs and sets to make it easy and economical for you to put together a high quality coin collection.
CLICK HERE FOR SHOWERS
CLICK HERE FOR INSTALLATION PDF
Coins Slot With Digital Timer Stopwatch
METERS & TIMERS
Please read all of the information on this page carefully. Meters are complete units which contain a meter case, coin / token acceptor, timer and coin box. If you request a timer, you will not receive the meter case, coin / token acceptor or coin box.
There are 3 basic styles of meters; HM5, HM6 and push button (non-coin). Each unit has the ability to take any timer that we offer.
Below is our complete range of meter styles and timers that will suit every need for a timed vend. We have made many different applications involving water and energy conservation for various markets.
Each meter style is capable of adding the Aqua-Miser shower kit. These meters can be used with contact relays, however, Monarch does not carry these items. You will have to check with your local electrical supply store.
The meter cases are made with security in mind. They feature a heavy guage welded steel construction, available in black powder coat or brushed stainless finish.
The coin / token acceptor is a drop / roll down mechanism that can accomodate a wide variety of sizes of round tokens or coins.
The coin box locks on all four sides and is enclosed in a vault that separates the coins from the timer and coin mechanism area. The coin box holds approximately 700 coins/tokens.
This meter is serviced from the front, allowing it to be recessed into a wall and still allow complete service.
HM6 DIMENSIONS: 4″ wide X 13 7/8″ tall X 9″ deep Complete unit weighs approximately 17 lbs.
3 timer styles available: single shot, accumulating, and accumulating with buzzer in 24, 120, and 230 volt A/C.
Add an “Aqua-Miser shower kit” which includes valve and transformer for shower applications.
HM5 SERIES METERS
The meter cases are made with security in mind. They feature a heavy gauge welded steel construction, available in black powder coat only.
The HM5 series meters come with a push/pull style coin/token acceptor. The Model 444 accepts 1 coin or token that lays down flat. The Vertical 8 accepts up to 8 coins or standard round tokens.
The coin box locks on all four sides and is enclosed in a vault that separates the coins from the timer and coin mechanism area. The coin box holds approximately 400 coins/tokens.
The service door is accessed from the rear (opposite the coin/token acceptor and coin box).
HM5 dimensions: 4″ wide X 6″ tall X 11″ deep Complete unit weighs approximately 15 lbs.
3 timer styles available: single shot, accumulating, and accumulating with buzzer in 24, 120, and 230 volt A/C.
Add an “Aqua-Miser shower kit” which includes valve and transformer for shower applications.
PUSH BUTTON METER
FOR WHEN YOU WANT TO CONSERVE RESOURCES, BUT DON’T WANT TO CHARGE!
The push button meter is a great way to control usage of precious resources without using coins or tokens. It is made of a solid NEMA rated, water-proof plastic based material. It is water-tight and easily mounted in any location.
The push button meter has an optional lock-out system to regulate the times when users are able to utilize the resources as well as help to control unwanted abuse or misuse.
Dimensions: 3 11/16″ wide X 5 1/8″ tall X 3 3/16″ deep Complete unit weighs approximately 1.5 lbs.
3 timer styles available: single shot, accumulating, and accumulating with buzzer in 24, 120, and 230 volt A/C.
Add an “Aqua-Miser shower kit” which includes valve and transformer for shower applications.
TIMERS
Timers are available in 24, 120, and 230 volt A/C.
Single shot timers (part number ends in “SS”) can be set to accept from 1 to 7 coins/tokens to start. Timer runs for set time and then turns off. Customer must wait for time to expire before more coins can be added.
Accumulating timers can be set for 1 to 7 coins to start. Each additional coin, after initial set of coins, will add more time. As long as coins are added before time expires, time will continue to accumulate. (For example: If timer is set so that each coin is worth 1 minute, with 4 coins to start; customer must insert 4 coins to start timer, giving them 4 minutes. Each additional coin inserted before time expires, will add 1 additional minute.)
Optional output buzzers will sound when there is little time remaining, alerting the customer to either add more coins, or let time expire. 15 second increment timers have a 1 minute warning. 2 minute increment timers have a 2 minute warning.
15 second increment timers (part number contains “-1”) – each coin can only be worth an increment of 15 seconds. For example, a coin could be worth 15 seconds, 30 seconds, or 15 minutes 45 seconds etc.; up to 31 minutes 45 seconds.
2 minute increment timer (part number contains “-2”) – each coin can only be worth an increment of 2 minutes. For example, a coin can be worth 2, 4 or 36 minutes etc. up to 254 minutes, but not 5 minutes, as it is not an increment of 2.
Please click on the links below for instructions on how to set your timer or wiring instructions:
20-24V-1SS – 24 VOLT A/C, SINGLE SHOT, 15 SECOND INCREMENT
20-24V-2SS – 24 VOLT A/C, SINGLE SHOT, 2 MINUTE INCREMENT
20-24V-1 – 24 VOLT A/C, ACCUMULATING, 15 SECOND INCREMENT
20-24V-2 – 24 VOLT A/C, ACCUMULATING, 2 MINUTE INCREMENT
20-120V-1SS – 120 VOLT A/C, SINGLE SHOT, 15 SECOND INCREMENT
20-120V-2SS – 120 VOLT A/C, SINGLE SHOT, 2 MINUTE INCREMENT
20-120V-1 – 120 VOLT A/C, ACCUMULATING, 15 SECOND INCREMENT
20-120V-2 – 120 VOLT A/C, ACCUMULATING, 2 MINUTE INCREMENT
20-230V-1 – 230 VOLT A/C, ACCUMULATING, 15 SECOND INCREMENT
20-230V-2 – 230 VOLT A/C, ACCUMULATING, 2 MINUTE INCREMENT
** Some specialty timers available. Please call for details. **
COMPLETE SYSTEMS
System 1 – HM5 series meter case, Model 444 acceptor, single shot timer
System 2 – HM5 series meter case, Model 444 acceptor, accumulating timer
System 3 – HM5 series meter case, Vertical 8 acceptor, single shot timer
System 4 – HM5 series meter case, Vertical 8 acceptor, accumulating timer
System 5 – HM6 series meter case with black powder coat, drop coin acceptor, single shot timer
System 5 SS – HM6 series meter case with brushed stainless steel finish, drop coin acceptor, single shot timer
System 6 – HM6 series meter case with black powder coat, drop coin acceptor, accumulating timer
Coins Slot With Digital Timer Countdown
System 6 SS – HM6 series meter case with brushed stainless steel finish, drop coin acceptor, accumulating timer
Coins Slot With Digital Timer Clock
System 7 – HM6 series meter case with black powder coat, drop coin acceptor, accumulating timer with output buzzer
System 7 SS – HM6 series meter case with brushed stainless steel finish, drop coin acceptor, accumulating timer with output buzzer
System 8 – push button meter with single shot timer
System 9 – push button meter with accumulating timer
System 10 – push button meter, accumulating timer with output buzzer
AQUA-MISER SHOWER KIT
The shower kit consists of an in-line valve and transformer and can be added to any System.
Coins Slot With Digital Timer 20 Minutes
In-line valve is 3/8″ ID.
Right angle valve (3/8″ ID) available upon request. Additional charges may apply. Call for details.
There is quite a bit of hype about various “certifications” on shower equipment.
First, in most applications, UL/CSA listings are REQUIRED only on systems rated to operate at 36 Volts or more. Listings for lesser voltages is voluntary.
All of the components in Monarch meters are UL/CSA listed.
Any company offering such components can offer no more than that, as the quality of the installation will determine the true safety of the units.
Secondly, There is no central clearing or certifying agency for ADA compliance. According to offices within the Federal and State Justice department who handle challenges under ADA, the greatest concern is with how the installation is made. For example, if the units are installed in areas inaccessible to those in wheelchairs, then there is no ADA compliance. No Manufacturer can claim to be fully ADA compliant unless the Manufacturer is also accepting responsibility for the installer.
Monarch has produced meters for use in showers and other coin metered applications since 1903.
There are units in service today that were originally sold with electro-mechanical timers in the 60’s, long before many thought that conserving water and minimizing waste in showers was of any interest at all. The recent addition of the HM6 and the accumulative timers, as well as the up coming introduction of an in-wall unit, demonstrate Monarch’s commitment to serving this need. Monarch units are in use in many countries as well as North American locations.
